Hydraulic punching machines are commonly used in many workshops, especially for metal fabrication. Generally, the machines possess considerable force and precision to assist owners and workers in completing production faster and with less manual labor. However, like all equipment, they also require proper care and regular upkeep to run smoothly.

Whether you’re running the machine or supplying the equipment, being able to spot early warning signs of trouble can save you time, money, and a whole lot of hassle later on. Let’s examine some useful, everyday inspection methods that can help prevent bigger problems later.

 1. Start with a Simple Visual Check

A good old-fashioned visual inspection is often the easiest and most effective place to start. Take a few minutes to walk around the machine and check for anything unusual—leaking hydraulic fluid, cracks, rust, or loose bolts. If something looks off, it probably is. Pay attention to tool alignment and general wear and tear on the punching head, too.

It’s a quick habit that can catch minor problems before they escalate.

2. Monitor the hydraulic fluid

Hydraulic fluid is critical to the operation of these machines. It powers the movement and pressure required to punch through tough metals, which is why it is essential to check the hydraulic fluid. This check can help identify low oil levels, low oil quality, contamination from water or metal shavings, or other problems.

A one-time regular oil check, either visually or with a fluid testing kit, is a great way to stay on top of any problems and avoid sudden breakdowns.

3. Check System Pressure

If your machine is not punching like it used to, the pressure could be the issue. During usage, pressure gauges monitor operating levels and conditions to help identify the pressure issues that may be concealed while the machine is in operation. Generally, drops in system pressure(should include resting pressure vs. active pressure) can indicate clogged filters, failed pumps, internal leaks, and other mechanisms that could reduce an otherwise poorly functioning machine. Fixing these items early can keep your machine creating maximum work.

4. Be Aware of Unusual Sounds or Vibrations

Machines convey signals – you simply have to know how to listen for them.  If your hydraulic punching machine is making weird noises (i.e. hissing, grinding or knocking), this could indicate something is wrong with it. Alternatively, if it experiences excessive vibration, this is another warning sign, potentially indicating misalignment or a loose part.  If it does not sound right or feel right, don’t dismiss it.

5. Use a Temperature Check

Hydraulic systems can often overheat too much, too. If specific parts of the machine are overheating unusually fast, that could be a cause for concern. Using infrared thermometers and thermal imaging cameras allows you to locate overheated areas in the motor, hydraulic hoses, or control panel. Finding hot spots early can help prevent more serious problems later on.

6. Check the Tooling for Wear

The punching tool and die take a lot of stress during operation. Over time, they naturally wear out. Regular inspection for dull edges, chips, or burrs helps keep the punch clean and accurate. Swapping out worn tooling not only improves results, it also protects the rest of the machine from damage.

7. Run System Diagnostics

Many advanced hydraulic punching machines can now offer a digital display or programmable controller. Like the hydraulic punching machines, they can display error messages, fault codes, or past issues from a list. By running diagnostic tests periodically, you can uncover issues with sensors, alignment, or the control system that you may have missed otherwise.

8. Stick to a Maintenance Schedule

Finally, always follow a regular maintenance plan. Clean the machine on a regular basis, lubricate moving parts, replace filters, etc. Most machine makers have a service schedule, and if you follow it, it will make a difference.

If you are dealing with a reputable workshop equipment supplier in UAE, you will also be able to get maintenance support, spare parts, and professional expertise that suits your machine manufacturer model.

Hydraulic punching machines are powerful, reliable tools—but only when they’re properly looked after. By using a mix of visual checks, fluid testing, pressure monitoring, and system diagnostics, you can catch small problems before they turn into big ones.

And if you’re running a busy metal workshop or managing equipment across multiple sites, partnering with an experienced workshop equipment provider in UAE can give you peace of mind and expert support when you need it most.

At the end of the day, a little maintenance goes a long way in keeping your machines (and your team) productive and safe.

To read more, click here : Single-Phase vs. Three-Phase Industrial Vacuum Cleaners: Key Differences Explained

The post Common Inspection Methods to Detect Failures in Hydraulic Punching Machines appeared first on Rockwood.

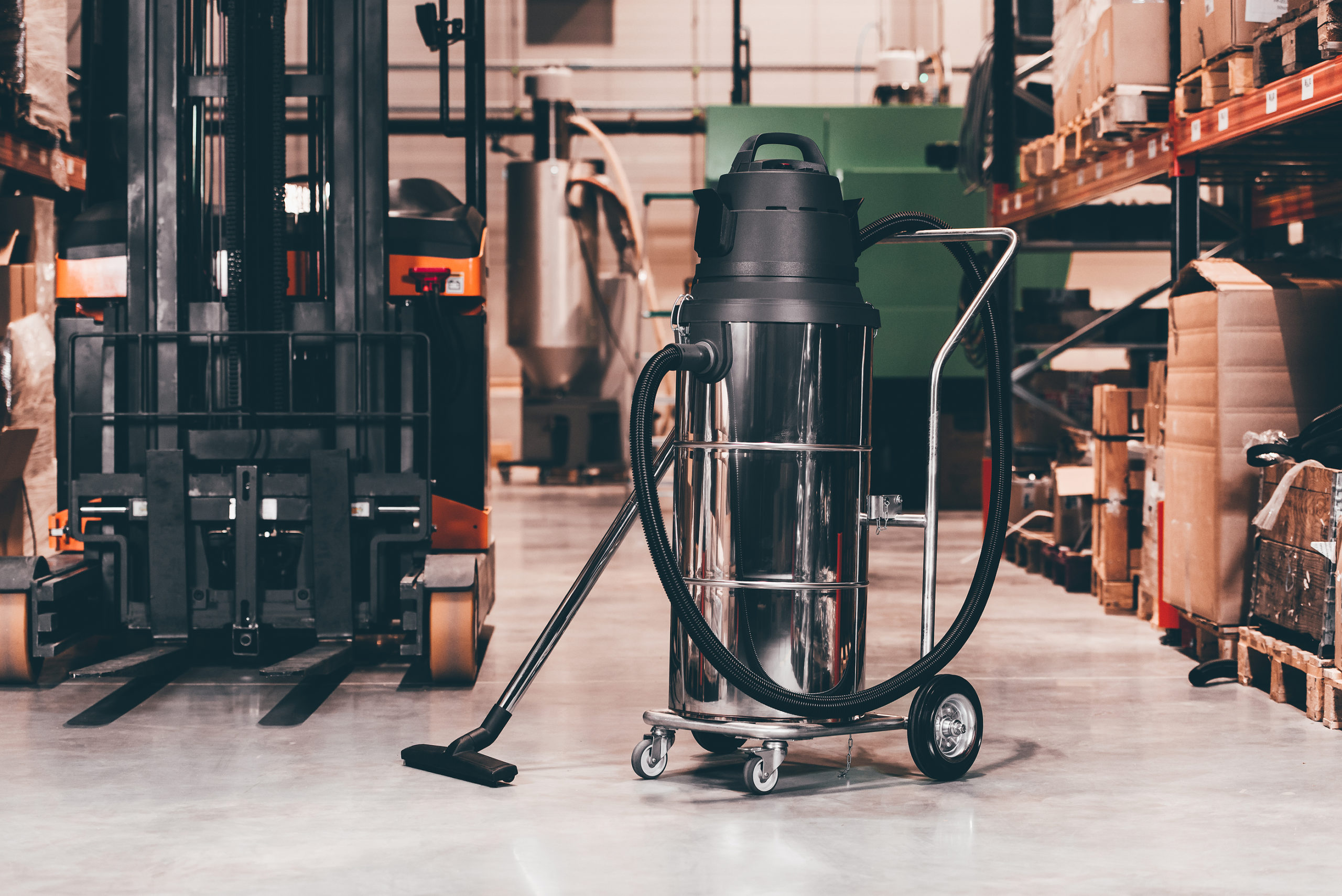

One of the most important differentiations when comparing vacuum systems, is whether they are single-phase or three-phase. These two types of machines are intended for very different purposes, and if you understand the basics it will make your purchasing decision easier and help prevent you from selecting equipment which is over and under powered.

If you are purchasing from an industrial equipment suppliers in UAE, knowing the above, will make the purchasing experience all that much smoother.

What’s the Deal with “Phases” Anyway?

Before we get into vacuum cleaners, it helps to understand the difference between single-phase and three-phase power:

Single-phase power is the type you’ll find in most homes and smaller commercial buildings. It’s good for lighter machines and appliances, usually operating at 220–240 volts.

Three-phase power is more popular in industrial settings. It provides a more stable and powerful electricity supply, typically running at 380–415 volts, and it’s made to support heavier, high-performance machines.

Single-Phase Industrial Vacuum Cleaners: Where They Shine

Single-phase vacuum cleaners are a solid choice for smaller operations or for cleaning tasks that don’t require constant or heavy use. They’re often used in workshops, garages, small warehouses, and light-duty maintenance jobs.

What Makes Them a Good Option?

Plug-and-play: You can connect them to a standard power outlet—no special installation required.

Portable: They’re usually lightweight and easy to move from one area to another.

Budget-friendly: They’re more affordable upfront, making them ideal for smaller businesses or lighter workloads.

But There Are Limits:

• They’re not built for long, continuous use.
• They can overheat if pushed too hard.
• They don’t have the same level of suction or capacity as three-phase units.

So, if you’re using a vacuum a few times a week for general cleaning, a single-phase model should do the trick.

Three-Phase Industrial Vacuum Cleaners: Built for Heavy-Duty Work

Three-phase vacuum cleaners are the go-to for larger operations, especially when dealing with heavy debris, hazardous dust, or long working hours. These machines are common in factories, large production facilities, and construction sites.

Why Choose a Three-Phase Model?

High performance: They offer stronger suction power and handle larger volumes of waste.

Designed for continuous use: Ideal for environments where the machine runs all day.

Energy-efficient: They consume power more evenly, which puts less stress on the motor and reduces wear and tear.

Consider This Before Buying:

• You’ll need a three-phase power connection, which isn’t always available in smaller buildings.
• They’re more expensive and may need professional installation.
• They’re usually bigger, heavier, and less mobile.

If your workspace already has a three-phase setup, though, and you need to clean frequently or deal with tough messes, it’s a worthwhile investment.

Quick Comparison: Single Phase vs Three Phase

How to Decide What’s Right for You

Here are a few straightforward questions to help you make your decision:

How frequently do you use the vacuum?

If it’s occasional or once a day for short periods, go with single-phase. For daily, all-day use, three-phase is more reliable.

What kind of waste are you cleaning?

Fine dust, powder, or small debris? Single-phase is enough. Heavy materials, large volumes, or hazardous dust? You’ll need three-phase.

What’s your facility’s power setup?

If three-phase power isn’t already available, setting it up can be costly. In that case, a high-quality single-phase vacuum may be a more practical solution.

What’s your long-term need?

Sometimes it’s worth investing in a three-phase vacuum even if it seems like more than you need now—especially if you expect your operations to grow.

For Businesses in the UAE

In the UAE, industrial spaces are expanding fast—whether it’s in logistics, oil and gas, manufacturing, or construction. The demand for efficient, high-powered cleaning equipment is on the rise.

That’s why it’s so important to work with an experienced industrial equipment supplier in UAE. A local supplier will understand your site conditions, know what power systems are common in your area, and help you choose equipment that meets UAE standards and regulations.

Look for a supplier that offers:

• A variety of single-phase and three-phase models
• On-site consultations or facility assessments
• Spare parts and after-sales support
• Warranties and service plans

Having that kind of backup gives you peace of mind and ensures your cleaning systems won’t let you down.

A good industrial vacuum cleaner is more than just a cleaning tool—it’s part of your workplace safety strategy. Whether you choose a single-phase or three-phase model depends on your power supply, how often you use the vacuum, and what kind of material you’re dealing with.

For smaller spaces or lighter use, single-phase models are a smart and cost-effective option. But if your work environment demands serious cleaning power on a regular basis, a three-phase vacuum cleaner is the better long-term investment.

If you’re based in the UAE and looking for the right solution, connect with a trusted industrial equipment supplier in UAE. They can guide you to the right choice for your facility and ensure you get reliable support after your purchase.

To read more blogs, click here: Smart Tips for Choosing the Right Ironworker Machine

The post Single-Phase vs. Three-Phase Industrial Vacuum Cleaners: Key Differences Explained appeared first on Rockwood.

1. Know Your Workshop’s Needs

Every shop is different; consider the types of metal you often work with, the weight of the materials, and how much work you process daily. Are you working on structural steelwork, smaller components, or general metalwork? Understanding your specific needs will streamline your machine selection process.

2. Pick the Right Tonnage

Ironworker machines have a variety of tonnage capacities. The tonnage of the ironworker usually falls between 20 tons to 150 tons. If you process thicker materials or do high-volume production, a higher-tonnage ironworker is the most suitable choice. But if you have a smaller workshop or are processing thinner materials, you will save money with a lower-tonnage ironworker while maintaining the same performance.

3. Go for Versatility

A machine that can do various functions may make a considerable difference. Many ironworker machines are capable of doing punch, notch, shear and bend, all in one unit. Features like adjustable settings, digital controls, and CNC compatibility also help improve accuracy and efficiency. If your tasks are diverse, consider a machine with easy tool changes and customization options.

4. Think About Energy Efficiency

Save on energy expenses and shrink your carbon footprint by choosing an energy-efficient machine.  Many modern machines deliver high-quality performance with minimal energy use. Be sure to check for models were add a few cooperative features to reduce your energy bill.

5. Find Reliable Dealers

Selecting a reliable dealer is key to a better experience. When you are searching for workshop machinery dealers in the UAE, select those with great reviews and a proven history of satisfied customers. Reliable dealers provide you with machines that are of the highest quality, professional advice, and after-sales support that you can rely on. Local dealers will typically have good knowledge of regional guidelines, and will be able to help you choose a machine that fits your needs.

6. Assess After-Sales Support

A machine is only as good as the support behind it. Ensure your dealer offers comprehensive after-sales service, including installation, training, and easy access to spare parts. Maintenance and timely repairs will keep your machine running smoothly, minimizing downtime.

7. Budget Smartly

Budget is crucial, but it is not everything. A less costly machine may ultimately cost you more owing to repairs and downtime. Quality and reliability have to come first. Many dealers in the UAE provide financing, so take advantage of it if you want to.

8. See the Machine in Action

Before purchasing, request a demonstration in real-time or send a representative to a showroom. Seeing the machine work will help you measure its performance and find out whether it meets your expectations and requirements. Many dealers will even provide a virtual demo, or if you use your own materials, a free run-through so you can measure the machine’s performance.

9. Focus on Safety

Safety is the top priority. Confirm that your machine has all the necessary safety features, such as emergency stops, safety guards, and automatic shut-offs, if possible. Utilizing machines that comply with international safety standards helps keep your operators safe while decreasing the possibility of an incident occurring at work.

10. Plan for the Future

When thinking about growing your business, it is a good idea to think about a scalable machine. Some ironworker machines are modular and allow you to add features or enlarge your capacity as your needs change. A flexible machine will meet your needs for years to come.

Investing in the correct ironworker machine can be a wise investment that will drastically improve your production and efficiency. Cooperating with trusted workshop machinery dealers in UAE, you will have a machine that offers you long-term value if you take the time upfront to assess your needs. Be patient, ask questions, and buy off of informed judgment. The right machine will improve efficiency and after all of your effort, your operation can begin to flourish if you’re either upgrading or expanding the business. Contact a reputable dealer today and give your metalworking business the equipment it needs to be successful!

To read more blogs, click here : 10 Essential Turning Operations You Need to Know with Lathe Machines

The post Smart Tips for Choosing the Right Ironworker Machine appeared first on Rockwood.

1. Straight Turning

Straight turning is one of the most fundamental yet widely used operations on a lathe machine. This operation entails that machining is done on the workpiece surface to give a cylindrical shape. This operation is indispensable for reducing the diameter and bringing a smooth and consistent finish on that diameter.

2. Taper Turning

Taper turning refers to the process of producing straight or exactly conical effects on the workpiece. This has reference where diameters of workpiece decrease on both sides toward a point. This is most important for parts that must fit tightly, such as machine-tool spindles and automotive products.  Methods include using a taper attachment, offsetting the tailstock, or adjusting the compound rest.

3. Facing

Facing refers to the process of the cutting made flatly perpendicular to the-axis of the workpiece) in rotation. Such operations on a workpiece are used generally to prepare ends of the workpiece for downstream machining or to get it to the required length. A flat face should be made to give an even touch after assembly, which is quite essential for its functioning.

4. Grooving

 Grooving is cutting out narrow channels or grooves on the workpiece. This is often applied in creating clearances for retaining rings as well as lightening of the workpiece. Grooving tools are made in practical shapes and sizes to give a perfectly made dimension by machinists.

5. Parting (Cut-Off)

The process of separating a machined component from the stock material is known as parting or cut-off. Using a specialized parting tool, machinists can achieve clean, precise cuts. This operation is critical for producing multiple identical parts from a single workpiece.

6. Thread Cutting

The process of making external or internal screw threads on a workpiece on a lathe machine is referred to as thread-cutting. Manual methods, as well as CNC controls for accurate production, can perform this operation. These threads, though imperceptibly in many cases, are useful for fasteners and bolts and many other members of machines.

7. Knurling

The purpose of knurling is to create a patterned surface on a part, improving its grip. Some of the common applications for this are tool handles and knobs. Knurling tools can come in varieties with different patterns, either straight, diamond, or angled, thus obtaining designs by the operator’s choice.

8. Boring

This is the process by which a hole already present on the workpiece is made larger, with precise tolerances and a smooth finish. This operation is critically important to achieve certain tolerances on internal diameters of various components, such as bushings and cylinders. Depending on the particular diameter range on bore size desired, boring bars vary in size.

9. Drilling

While typically associated with drill presses, drilling can also be performed on a lathe machine. This process utilizes a stationary drill bit to form holes in a rotating workpiece. Drilling on a lathe allows for greater precision and alignment.

10. Reaming

This is a finishing operation that serves to achieve the desired size and surface finish for a previously drilled hole. It serves to make sure that the holes continue to the required tolerances and remain perfectly round. Reaming tools will cut out a very small amount of material, creating a nice, smooth, round hole.

Why Choose Rockwood Workshop Machines for Your Lathe Machine Needs?

Rockwood Workshop Machines being one of the trustworthy industrial equipment supplier in UAE, offers one of the widest ranges of lathe machine made in accordance to the highest industry standards. Rockwood lathe machines are extremely durable, precise, and efficient, making them perfect for all kinds of turning operations. We provide expert advice on choosing the best equipment for your needs in order to gain the most performance and productivity.

Gaining mastery over these basic lathe machine operations will generally support your machining performance. Quite literally, efficient production of simple and complex components depends on the turning techniques in machining. For those who prioritize reliable and efficient lathe machines, trust the industrial equipment supplier today. Feel free to contact us if you want to explore our products in further detail for assistance with your machining needs.

To read more blogs, click here: How to Choose the Right Punch for Your Hydraulic Punching Machine

The post 10 Essential Turning Operations You Need to Know with Lathe Machines appeared first on Rockwood.

Using Hydraulic Punching Machines

Hydraulic punching machines utilize hydraulic forcing to push a punch into metal or other materials, producing holes that are clean and accurate. These efficient machines, valued for their ability to work with thick materials, are commonly utilized in the construction, automotive, and metal fabrication industries. When selecting the right punch, performance is observed to be improved. It also assures the durability of the punch along with the machine.

Key Factors in Choosing the Right Punch

1. Material type and thickness matter

Material type and punch thickness go hand-in-hand in selecting your punch. Materials with diverse compositions, including aluminum, stainless steel, and mild steel, have different hardness characteristics. While stainless steel would require a high-strength punch (one made of carbide or coated tool steel), aluminum, being a softer metal, can be processed by using a standard steel punch. Checking material specifications helps you select the appropriate punch, ensuring optimal results.

2. Choose the Right Punch Material and Coating

Punches are machined from one of several materials, each having its implications for durability and performance. The most common are:

– High-speed steel (HSS): For moderate-duty uses; it has decent resistance to wear.

– Carbide: Very hard, long-lived; good for punching high-strength metals.

– Tool steels with coatings: Coatings like titanium nitride (TiN) lengthen durability and lower friction, increasing punch lifespan.

With a punch made from the proper material with a protective coating, longevity advantages are assured with a significantly reduced maintenance cost.

3. Select the Appropriate Punch Shape and Size

There are different punches of various shapes and sizes for different hole types, including

– Round: The normal shape used in most jobs.

– Square: Mostly used in electrical and structural jobs.

– Oval and Rectangular: Used in slots and special applications.

– Custom shapes: That are designed for specific industry needs.

Selecting a punch that is correct in size prevents material deformation and gives a clean cut of good quality.

4. Make sure there is proper clearance and alignment for the die.

This is the spacing between the punch and die. The appropriate clearance would help reduce the formation of burrs and protract punch life. The ranges of ideal clearance based on material thickness are mentioned below:

 -Less clearance would cause early wear and punch failure.

-More clearance would cause ragged edges and bad hole quality.

Proper alignment of the punch and die is important to guarantee accurate cuts with the same quality without breakage of tooling and wear out of the machine.

5. Check punching force and compatibility with the machine.

Every machine provides some specific value for punching force. The punch chosen should comply with the value of punching force capacity in conjunction with the machine. Those causing damage to the machine will be oversized from those providing support for the punch. Always consult the machine manual or seek advice from an industrial supplier before selecting a punch.

6. Maintain the punch regularly for longevity.

Maintenance itself is one of the practices that helps increase the life of a punch. Included in these basic recommendations will be: lubricating the punch, as a conducting party; proper storing of the punch in a clean, dry, and organized manner to prevent damages; regularly inspecting the punch for wear and replacing those that need to be replaced at that time. Using high-quality punches from a reputable industrial equipment supplier increases durability and reduces downtime further.

7. Balance Cost and Quality

Cheaper punches might be tempting in times of budget constraints, but, really, an investment in higher-quality punches will pay off in the long run. Higher-quality punches give better service, and programs need to replace them less frequently, and thus this indirectly helps lower their overall operating costs.

Finding a Reliable Supplier for Punches

To get the best punches for your hydraulic punching machine, collaborate with a trusted industrial equipment supplier. The ideal suppliers provide:

– Durable and high-quality punches.

– Various shapes and sizes of the punch.

– Technical support and product recommendations.

– Competitive pricing with fast delivery.

A reputable supplier gets you the correct punches designed specifically to go with your machine and project requirements.

Selecting the right punch for your hydraulic punching machine significantly impacts efficiency, product quality, and equipment longevity. By considering factors like material type, punch material, shape, die clearance, machine compatibility, and supplier reliability, you can make an informed decision that benefits your operations.

For businesses in the UAE seeking a dependable industrial equipment supplier, Rockwood Workshop Machines offers top-quality hydraulic punching machines and accessories. Choosing the right supplier ensures you get the best tools to optimize efficiency and enhance performance in your metalworking operations.

To read more, click here: Fastener Insertion Machines: Understanding the Process, Technology, and Benefits

The post How to Choose the Right Punch for Your Hydraulic Punching Machine appeared first on Rockwood.

The Evolution of Fastener Technology

Before automated solutions, fastener insertion was primarily a manual process—time-consuming, labor-intensive, and prone to human error. For the majority of history, workers have manually positioned each fastener-an incredibly inefficient and tedious task-rather than doing it blindly, which ultimately led to inconsistencies, uneven distributions, and low quality. As manufacturing grew, new, more efficient solutions needed to be developed.

Enter the fastener insertion machines, designed to automate this integral assembly operation. These technically advanced workshop tools have traveled the whole distance from simple mechanical devices to highly sophisticated computer-controlled systems capable of inserting a large variety of fasteners with a remarkable degree of accuracy.

Understanding How Fastener Insertion Machines Operate

The automation of fastener insertion generally occurs in the following stages:

1. Feeding System

Contemporary fastener insertion machines commence with an automated feeding mechanism. Fasteners are placed into a hopper or magazine and then oriented correctly for entry into the insertion process. Advanced machines can handle multiple fastener types and sizes, with quick-change systems allowing for rapid production changeovers.

2. Component Positioning

Precise positioning is important for successful fastener insertion. The workpiece is secured on a fixture or conveyor system, often using vision systems or sensors to verify proper alignment. Some advanced machines incorporate robotic arms to manipulate components into the correct position.

3. Insertion Process

The actual insertion varies based on the fastener type:

• For rivets, the machine positions the rivet and applies pressure to deform it
• For self-clinching fasteners, controlled pressure presses the fastener into designated perforations.
• For threaded inserts, the machine applies rotational force to drive the fastener into place

4. Quality Verification

Top-of-the-line fastener insertion machines equipped with quality control systems ensure that the fasteners are correctly inserted. These include sensors that measure insertion depth, applied force, or torque and ensure that each fastener meets the required specifications. Some machines can automatically reject any component that does not have a properly installed fastener.

Advanced Technologies in Modern Fastener Machines

The machines for fastener insertion made today have quite a few modern technologies into play:

Servo Control Systems

In contrast to their dated pneumatic systems, servo-controlled ones boast greater accuracy, programmability, and features. These systems allow real-time adjustments of insertion force and speed to create differing material and fastener requirements.

Vision Systems

Integrated cameras and image processing delegate machine to check on component positioning, fastener orientation, and insertion quality. In this way, substandard insertion would remain undetected.

Industry4.0 Compatibility

Nowadays, connecting fastener insertion machines to networks is something quite fashionable in modern-day workshop tools. Then, it may share information with an execution system for manufacturing, control production in real-time, and enable predictive maintenance and process optimization.

Multi-axis Control

Advances in some special multi-axis systems provide possibilities for inserting complex shapes along with several types of fasteners without the need to reposition parts.

The Business Benefits of Automated Fastener Insertion

Implementing Fastener Insertion Machines delivers several significant advantages:

Increased Productivity

Automated systems can insert fasteners at rates many times faster than manual methods. A machine that can place 30-60 fasteners per minute dramatically outperforms even the most skilled human operator, who might manage 5-10 per minute.

Improved Quality and Consistency

With Fastener Insertion Machines in place, it is now possible to eliminate human variability, resulting in integrity and depth of insertion, orientation, and force application being consistent. This not only reduces the defect rates but also enhances the overall standard of the final product.

Reduced Labor Costs

Workshop machines of this type, while proving to require a huge initial investment, continue to save on labor costs. Such machines often directly replace several manual workstations, requiring only a single operator.

Better Worker Safety

Automated fastener insertion removes employees from repetitive tasks that can contribute to strain injuries. Furthermore, the risks associated with the manual handling of insertion tools and presses would also disappear.

Material Saving

Precision in controlling the insertion reduces waste arising due to erroneously installed fasteners- extremely valuable when the specialized fasteners employed are costly or the components involved are delicate.

Data Collection and Process Improvement

Modern machines collect extensive data at each insertion operation, allowing manufacturers to recognize trends that let them optimize processes and document quality assurance efforts.

Selecting the Right Fastener Insertion Solution

When considering Fastener Insertion Machines for your operation, several factors deserve attention:

• Production volume – Higher volumes justify more sophisticated automation
• Variety of fasteners – Some machines specialize in specific fastener types, while others offer flexibility
• Component materials – Different materials require specific insertion technologies
• Quality requirements – Critical applications may demand advanced verification systems
• Space constraints – Machines range from compact benchtop units to large automated cells
• Integration needs – Consider how the machine will fit into your existing production flow

The Future of Fastener Insertion Technology

With the ongoing evolution in manufacturing, fastener insertion machines can only get better. Development in the area of artificial intelligence provides scope for smarter quality control; advances in robotic technologies will allow for more flexible handling of advanced components.

For manufacturers that consider investing in fastener insertion machines and other workshop tools of high quality, Rockwood Workshop Machines has a complete range of solutions. Its experts can assist you in assessment regarding the specific requirements you have in mind and propose suitable technology to enhance your fastener insertion operations and returns on investment.

To read more, click here: Why Plate Straightening and CNC Leveling Are Essential for Steel Fabrication

The post Fastener Insertion Machines: Understanding the Process, Technology, and Benefits appeared first on Rockwood.

What Is Plate Straightening, and Why Should You Care?

Before arriving at the fabrication floor, the steel plates undergo rolling, cutting, welding, and handling. It isn’t surprising if they arrive bent or uneven. Plate straightening is basically taking a rest for the plates to iron out the imperfections, ensuring that they are perfectly flat. Why bother? Because even the smallest thing about bends will throw off an entire assembly, thereby creating some structural problems and incurring rework. More straight plates mean everything will fit nicely, avoiding a lot of time and headaches later.

How CNC Leveling Takes It to the Next Level

Enter CNC leveling—the high-tech cousin of traditional straightening methods. Using computer-controlled precision, CNC Roller Leveling machines apply just the right amount of pressure through a series of rollers to flatten metal plates with pinpoint accuracy. The result? Uniformity across the entire surface, every single time. No guesswork, no inconsistencies—just perfectly leveled steel ready for whatever project lies ahead.

Why These Processes Are Game-Changers in Steel Fabrication

1. Stronger, Safer Structures

Nobody wants to worry about structural failures. Flexed steel can endanger the structural stability of the buildings, bridges, and machines. With plate straightening and CNC leveling, fabricators procure these steel components to act correctly under load, guaranteeing safer and reliable projects.

2. Precision That Pays Off

Imagine you start putting parts together, and nothing fits! So frustrating, right? Misalignment of unequal plates can slow the regular production flow and incur even greater cost. The CNC-roller-leveling machine affords each plate to be standardized to the minute, easing reworking and allowing the project completion to be back on track.

3. Cost-Cutting Began to Reduce Corners

Flat plates are easier to handle. They give good welds, are easy to fit together quickly, and require less manual design work. All this saves labor costs and results in shorter project completion time. Therefore, it pays off to have formed a partnership with a competent industrial equipment company for receiving reliable machines and consultation that will make processes much smoother.

4. Flawless Surfaces for Better Finishes

Surface quality is of paramount importance in painting or coating. CNC leveling not only straightens up the steel plates but also smoothens them for better coating adhesion and a longer-lasting coating. A smoother surface means a more polished final product the ultimate product is a fine new automobile or a fine and shining building facade.

5. Versatile Usage Across Industries-

From automotive factories to aerospace facilities, steel is found everywhere. CNC Roller Leveling machines are simplified machines that can accommodate multiple thicknesses of plates and kinds of materials. Therefore, it is better to work with a trusted industrial equipment supplier while having a clear idea about your specifications in any industry.

How to Choose the Right Industrial Equipment Supplier

Not all suppliers are created equal. When selecting an industrial equipment supplier, look for:

– Top-Quality Machines: Durable equipment means fewer breakdowns and consistent performance.

– Reliable Support: A supplier who offers technical guidance and maintenance support is invaluable.

– Custom Solutions: Every fabrication shop is different; seek a supplier capable of customizing equipment for your workflow.

– Training Resources: Proper training helps your team get the most out of new machinery.

The Future of Steel Fabrication: Smarter, Faster, Better

The technologies of steel fabrication develop fast. Such acts as the CNC Roller Leveling machines are a good example of how automation and technology can change traditional processes. By embracing technology, fabricators meet the demands that are coming high on speed, quality, and efficiency. It is more on steel fabrication lead-watching than simply catching up.

Unofficial attributes about plate spot and leveling do not stand out in the average steel fabrication. They ensure that a steel plate remains flat, strong, and conducive to precision fabrication. CNC Leveling machines give time and throughput nothing compared to this. A dependable industrial equipment supplier in the UAE, for instance, supplies Rockwood Workshop Machines for this very purpose, thus maintaining a smooth process in the operations. These crucial techniques place fabricators at a competitive advantage, being at the cutting edge of the business with precision and delivery time counted every single minute in the production processes.

To read more, click here: Different Types of Carbide Application Methods and Equipment

The post Why Plate Straightening and CNC Leveling Are Essential for Steel Fabrication appeared first on Rockwood.

Carbide coating is an important process applied in the aerospace, automotive, metalworking, and manufacturing industries. It greatly enhances the durability and extends the service life of critical components by improving their wear resistance. Knowledge of the various coating options and carbide application equipment involved allows a firm to select the correct technology for their individual needs. This blog discusses the principal application methods and equipment facilitating the efficient and effective application of carbide.

Common Carbide Application Methods

1. Thermal Spray Coating

The thermal spraying of carbide coating is one of the most common methods in coating application. This method uses heated carbide materials, which are coated onto a surface. The beginning of the coating development is either flame, plasma, or high-velocity oxygen fuel (HVOF).

• Plasma Spraying – Uses a high-temperature plasma arc to create thermal energy capable of melting carcides before spraying them onto the surface. This strongly adheres to this surface and is very durable.
• HVOF Spraying – This method allows fat particles to be projected at high speed using fuel and oxygen mixtures that bond and form a coating.
• Flame Spraying – The method employs a combustion flame to melt carbides, which is applied to a substrate. It’s a cost-effective coating solution.

All of the coating techniques have their own distinct merits, giving a wide range of hardness, good resistance against wear, and surface finish fit for each individual industry.

2. Brazing

Brazing is a method of fastening carbide to metal surfaces that use a filler material with a melting temperature lower than that of the base metal, thereby gaining a good bond with the carbide particles. This approach facilitates the manufacturing of carbide-tipped tools and wear parts. The method offers a good, solid bond that helps maintain wear-resistance and thereby long life.

3. Sintering

Sintering is a powder metallurgy process where carbide powder is compacted with very high pressure then heated to produce a solid and dense structure. This technique is primarily used to fabricate cutting tools, carbide inserts, and wear-resistant items. Normally, the sintered carbide parts provide amazing mechanical strength with good toughness and resistance to high temperature, rendering them most superb for degradation applications in industries.

4. PVD and CVD

PVD and CVD coating systems are advanced machines designed to apply fine carbide coatings through vapor deposition techniques. These systems control very accurately and precisely the thickness and composition of the coating, conferring outstanding wear resistance and hardness to cutting tools, molds, and industrial components.

5. Spark Deposition Technique

The spark deposition is a sophisticated carbide application approach wherein localized heating is produced upon the release of electrical discharges within the substrate-a process that allows carbide researchers’ adherence on to the substrate. The method thus provides strong bonding, will resist high wear, and will have very little thermal distortion, all of which are desirable effects for precision applications.

Main Equipment in the Application of Carbide

To guarantee a superior finish of carbide coatings, quality-specific carbide application equipment is necessary. These machines determine precision, facility, and uniformity in each step of the process.

1. Thermal Spraying Systems

Thermal spray systems are versatile machines used in a range of thermal spray applications, including plasma, HVOF, and flame spraying. These systems generally include spraying guns, heat sources, powder feeders, and control units. In industries like aerospace, automotive, and manufacturing, these coatings are frequently applied to parts to improve their resistance to wear and corrosion.

2. Brazing Machines

Brazing machines are used to create strong coatings of carbide on a surface using filler material. They control heating and cooling to facilitate a reliable bond of carbide to the base metal. Such types of machines are indispensable in tool-making and metal fabrication, where they improve the performance and longevity of industrial cutting tools and other wear-resistant parts.

3. Sintering Furnaces

Sintering furnaces are for pressing carbide powders to make solid and tough parts. Sintering is generally carried out at high temperatures and pressures with the intent of providing the density and hardness demanded of that kind of material. This is a critical process in the production of carbide inserts, cutting tools, and wear-resistant machine parts.

4. PVD and CVD Coating Systems

PVD and CVD techniques are complex and advanced methods for making thin carbide coatings with deposition. The control of deposit thickness and composition by PVD and CVD yields optimum wear guarantees and hardness in cutting tools, molds, and erected industrial components.

5. Spark Deposition Systems

A spark deposition system that builds up carbide layers by depositing several electrical sparks onto the substrate. This mechanism generates localized heat melting the carbide material to fuse it to the surface. The precision and good adhesion of spark deposition systems make them perfectly suitable for covering complex geometries and hard-to-reach areas. These are applied in an industry striving for enhancement in wear resistance, such as tooling, manufacturing, and maintenance.

Essential Workshop Tools for Carbide Applications

Apart from carbide application machines, there are many workshop tools that are also necessary to make carbide coatings successful. The tools include:

• Grinding Machines – Used for finishing and polishing carbide-coated surfaces to achieve the desired shape and smoothness.
• Cutting Tools – Needed to machine carbide-coated components to a precise finish.
• Measuring Instruments – Includes calipers, micrometers, and hardness testers to ensure correct thickness and quality of carbide coatings.
• Protective Gear – Required are safety glasses, gloves, and respiratory masks when handling carbide powders, in addition to high-temperature application methods.

Carbide application methods and equipment have changed industrial processes by enhancing the durability and performance of machine components. Whether it is done through thermal spraying, brazing, sintering, or vapor deposition, each method depends on the specific needs of a business. Investing in extensive carbide application equipment and essential workshop tools enables operators to achieve efficiency, precision, and long-lasting coatings, thereby helping industries maximize production and reduce downtime. As technology transforms itself, more time-tested carbide applications give a great advantage to differentiated businesses.

To read more, click here: Top 5 Trends Shaping the Future of Industrial Vacuum Cleaners

The post Different Types of Carbide Application Methods and Equipment appeared first on Rockwood.

1. Automation and Smart Technology Integration

The implementation of automation and smart technology features in industrial vacuum cleaners is one of the important innovations. Modern units are hooked up to IoT, so you can monitor them in real-time, collect data, and control them remotely. These smart vacuums can track their performances, solicit operator intervention if maintenance is required, and program themselves to achieve optimal operation according to the cleaning environment.

Predictive maintenance technology, for instance, reduces downtime by identifying problems that could potentially be serious before they actually become critical. Cleaning robots may also be programmed to clean certain areas at certain times to further lessen the amount of human intervention required and to increase the overall efficiency of the cleaning process. A growing demand for intelligent cleaning solutions will progress as industries move toward smart factories.

2. Energy Efficiency and Sustainability

With heightened environmental regulations and international momentum toward sustainability, energy-efficient industrial vacuum cleaners have become more widely accepted. Manufacturers are dedicating efforts to creating machines that operate with the highest possible energy efficiency and the lowest possible power draw. Such machines may now include features like variable speed motors and energy recovery systems to keep power levels low.

Increasingly, these machines are being made from sustainable materials. They are designing filters and other consumables for longer lives, thus cutting down both waste and operational costs. As companies strive to lower their carbon footprints, sustainable vacuum solutions have become a vital part of their environmental plans.

3. Enhanced Filtration Systems for Health and Safety

It is necessary to maintain a clean environment which is free of contamination, in the development of pharmaceutical industries, processed foods, and electronics. New advanced filtration systems, being invented, lay the future of industrial vacuum cleaners, carrying on controlling even the smallest dust particles, harmful dust, and allergens.

HEPA (High-Efficiency Particulate Air) filters have become standard in many industrial vacuum designs, ensuring that no harmful particles are allowed to escape back into the surrounding environment. There are now vacuum cleaners that are being developed for combustible dust applications. These are to their specifications for the avoidance of a worst-case workplace explosion and fire. As occupational health and safety regulations become ever-stricter, the vacuum cleaners that can provide their superior filtration are bound to continue expanding in demand.

4. Customization and Industry-Specific Solutions

The so-called “one-size-fits-all” concept is beginning to be rendered obsolete when it comes to the industrial vacuum cleaner market. Design solutions are now tailor-made to address an end user requirement. With the use of specialized equipment to meet the criteria of hazardous materials handling, extreme condition operation, or industry-specific compliance regulations, manufacturers will offer even more specialized equipment.

The pharmaceutical industry requires vacuums that keep cross-contamination at bay, while the construction sector needs robust machines capable of handling heavy debris and dust. The move toward customization makes industrial vacuum cleaners more than just a piece of equipment; they become an essential element of the operational workflow of a company. Providing some of those customized solutions can help you as an industrial equipment supplier with a competitive edge among your peers.

5. Compact and Ergonomic Designs

The design of industrial vacuum cleaners is now guided increasingly by the demand for space efficiency combined with operator comfort. There is a trend for small machines that provide high power, especially in those places where space is limited. Features such as adjustable handles, light constructions, and wheels that are easy to maneuver are now receiving extra attention to reduce fatigue and enhance productivity.

Furthermore, the designs are modular, facilitating maintenance and upgrades. This added flexibility for both equipment usage and lifespan enables the suite to evolve in accordance with the changing face of industrial needs. Staying the path towards more compact and user-friendly vacuum cleaners will stay the focus given the dynamics of workplace ergonomics and efficiency.

Technological advancements, environmental considerations, and demands for custom solutions are molding the future of industrial vacuum cleaners. These help in the evolution of this vital equipment, with all sorts of automation, energy efficiency, advanced filtration, industry-specific designs, and ergonomic innovations. It will therefore be prudent for industrial equipment suppliers and businesses alike to ensure that they are abreast of these trends so as to maintain an edge in an ever-changing landscape.

As industries emphasize corporate efficiency, sustainability, and workplace safety, the requirement for technologically upgraded industrial vacuum cleaners will continue to grow. With these trends, organizations can arm themselves adequately to handle the challenges ahead in the industrial domain. For the operators in the UAE, Rockwood Workshop Machines is known as the trusted industrial equipment supplier which provides a variety of advanced vacuum solutions tailored according to your industry needs.

To read more, click here: Lathe Machines vs Milling Machines: Which One is Better for Your Metalworking Needs?

The post Top 5 Trends Shaping the Future of Industrial Vacuum Cleaners appeared first on Rockwood.

Understanding Lathe Machines

A lathe machine is commonly used to shape metal, wood, or plastic materials. The workpiece rotates against a tool that performs cutting operations on it to give it the final shape. Though lathe machines are very effective and usually used for cylindrical casting such as shafts, rods, and bearings, they can be used for producing other shapes as well.
Lathe machines have some excellent capabilities to perform turning, facing, threading, etc. The cutting tool stays in place as the work piece spins rapidly. This speed gives precision cuts to provide specific shapes. Because of their accuracy and surface smoothness, lathes are also the machines of choice for surface detail work.

Applications of Lathe Machines:

• Producing cylindrical components like shafts, rods, and pipes.
• Threading processes for bolts and screws.
• Drilling, boring, and facing operations.
• Polishing and smoothing of surfaces.
• Assembling complicated designs with high precision.

The Role of Milling Machines

Milling machines can be used to cut, shape, drill, or machine any of a wide variety and range of materials. Lathes differ from milling machines in that different rotating cutters remove material from the workpiece, which remains stationary. As a result, the milling machine can create flat surfaces, contours, slots, and other intricate patterns.
Different configurations of milling machines include vertical and horizontal ones. A milling machine is very versatile cutting detailed features in multiple directions, which makes it a very flexible machine. It is good for machining large and irregular parts that need detailed dimensions.

Applications of Milling Machines:

• Cutting and shaping of flat surfaces, grooves, and slots.
• Drilling, reaming, and boring operations.
• Complex parts like gears, wheels, and other intricate components.
• Operations that require precise and varied cutting motions.

Major Differences Between Lathe Machines and Milling Machines

While both lathe machines and milling machines are equally important tools in metalworking, they are individually advised for different types of work. The difference in these two is as follows:-

Type of Operation:

Lathe Machines: A lathe machine turns the workpiece while the cutting tool remains fixed. It is ideal for turning, shaping, and machining cylindrical parts, with the primary functions of turning, drilling, and threading.
Milling Machines: A milling machine is one which cuts material from fixed workpieces using a rotating cutter. They are versatile and can carry out a range of functions, such as drilling, machining, and the ability to produce irregular forms.

Workpiece Orientation:

Lathe Machines: The workpiece is held firmly on the lathe spindle to rotate.
Milling Machines: The workpiece is stationary while the milling cutter moves along the material in different directions.

Complexity of Operations:

Lathe Machines: General operations in the lathe are simpler and can be used in the manufacture of cylindrical parts. Specific tasks, like threading, drilling, and turning, are generally within the gambit of these machines.
Milling Machines: Milling machines allow for a wider variety of operations, including more intricate tasks such as cutting complex shapes, creating flat surfaces, and working on irregular parts.

Speed and Precision:

Lathe Machines: Lathe machines excel in producing precise, smooth, and uniform surfaces, especially for cylindrical parts. They are faster for creating cylindrical shapes but they are less adaptable for other operations.
Milling Machines: Milling machines offer high precision, especially for tasks requiring detailed shapes or multi-directional cuts. However, they tend to be slower than lathes when it comes to mass production of cylindrical parts.

Choosing Between Lathe Machines and Milling Machines for Your Metalworking Needs

Now that we’ve covered the basics of lathe machines and milling machines, how do you decide which one is right for your specific needs? Here are some factors to consider when making your decision:

Type of Workpiece:

• If your project involves creating cylindrical shapes or parts like shafts, rods, and pipes, then lathe machines would be your best choice.
• If you need to cut complex shapes, or flat surfaces, or work on irregular parts, drilling and milling machines would be more suitable.

Complexity of Operations:

• For simple tasks, lathe machines are often more efficient and simpler to use. If your work requires intricate designs, milling machines will provide the versatility you need for precision cutting and multi-directional operations.

Material Type:

Both lathe and milling machines can handle different kinds of metals, like aluminum, steel, and brass. For harder materials and intricate details, milling machines are often the better choice.

Production Volume:

• Lathe machines are great for high-volume repetitive work such as turning and threading operations where quality and speed should remain constant.
• Milling machines can do large jobs but are helpful in custom runs or complicated parts that require different cuts with very tight tolerances.

Space and Budget:

• Lathe machines are typically more compact and cost-effective for businesses looking for a reliable, high-precision tool for basic metalworking.
• Milling machines, especially advanced CNC models, can be larger and more expensive but offer far more flexibility for a wider range of tasks.

Both lathe machines and drilling and milling machines have their advantages determined depending on the specific needs of the job. While lathe machines are necessary for high-precision, cylindrical parts, milling machines have the advantage of versatility and the ability to handle more complex shapes and cuts.
Such knowledge must form the basis of a good choice for business or hobbyists contemplating metalwork. Whether turning simple parts or designing intricate models, the right selection will greatly enhance the finished piece.
At Rockwood Workshop Machines, we offer all types of lathe and milling machines that will fulfill your needs. Search for the best precision lathe machines or versatile drilling or milling machines for all over UAE and GCC. Our team can guide you toward the best solution for your workshop. Browse and find the right equipment to take your metalworking projects to a different level!

The post Lathe Machines vs Milling Machines: Which One is Better for Your Metalworking Needs? appeared first on Rockwood.
