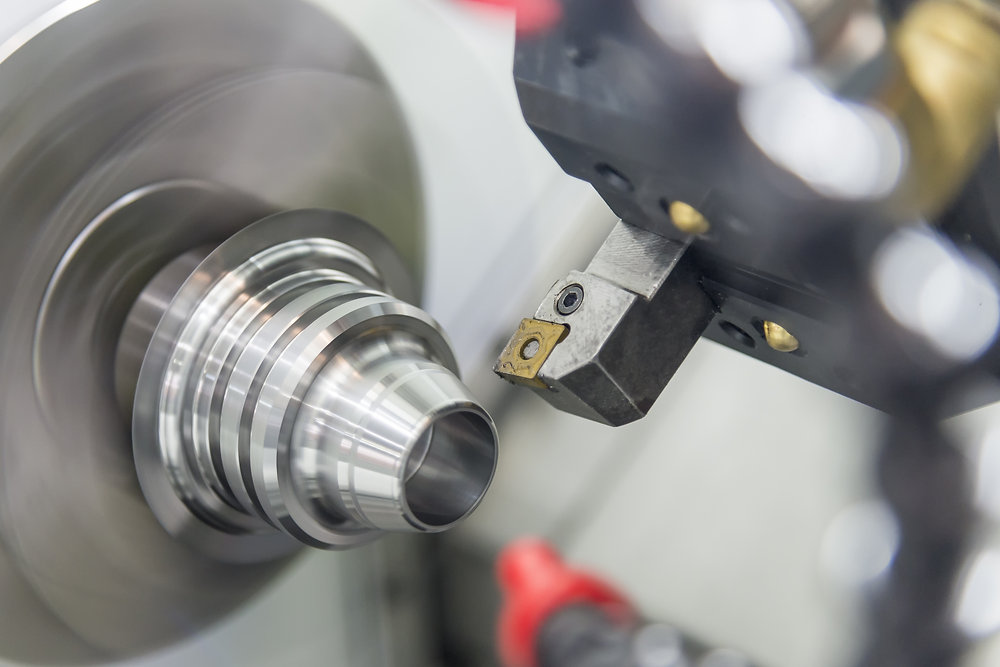

Key Lathe Tools Every CNC Operator Should Know
In CNC machining, lathe machines are central to precision and versatility. If you’re establishing a new workshop in the UAE, or upgrading one, knowing the important lathe tools is critical to peak performance. This overview highlights the basic lathe tools that will help any CNC operator be efficient and create the highest quality parts.

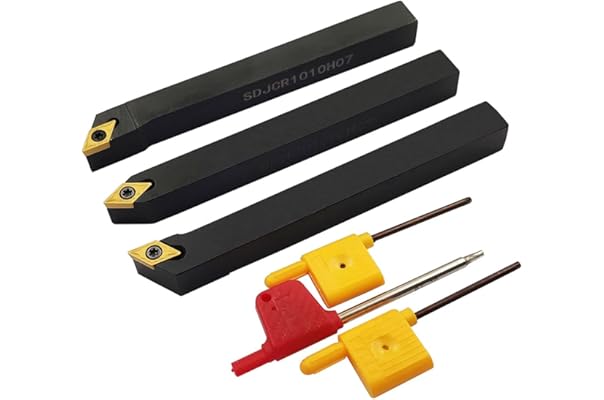

1. Turning Inserts
Turning inserts are interchangeable cutting tools that screw onto the tool holder. Carbide, high-speed steel (HSS), and ceramic are examples of cutting materials selected for their suitability to various machining applications.
Carbide inserts, for example, are suited to high-speed machining, owing to their hardness and wear resistance.
Applications:
* External and internal turning operations
* Facing
* Profiling
Benefits:
* Cost-effective, replaceable
* Consistent cut
* Easy care and maintenance
2. Boring Bars
Boring bars are utilized to precisely expand existing holes. They come in solid and modular types, with the latter offering flexibility in adjusting the cutting length.
Applications:
* Internal diameter (ID) machining
* Finishing operations
Benefits:
* Achieves tight tolerances
* Suitable for deep hole machining
* Enhances surface finish

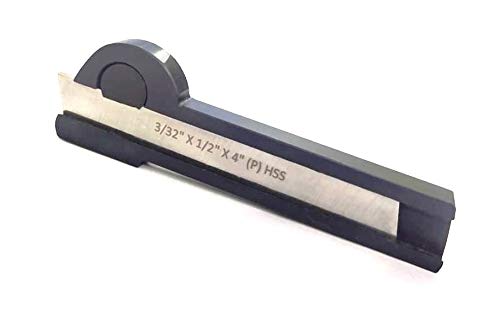

3. Parting Tools
Parting tools, also referred to as cutoff tools, are used to detach a finished component from the primary workpiece. They are beneficial for cutting completed parts off workpieces without disturbing the residual part.
Applications:
* Cut off finished parts
* Grooving
Benefits:
* Makes a clean cut off
* Reduces cycle time
* Less tool wear
4. Knurling Tools
Knurling tools are tools that format and create texture on the workpieces surface. The textured surfaces are intended to provide grip or aesthetics. This is often used in making handles and knobs.
Applications:
* Creating textured surfaces
* Grip on cylindrical parts
Benefits:
* Increased functionality of the part
* Aesthetic Value of Part
* Increase the usability of parts
5. Chamfering Tools
Chamfering tools produce angled edges on a workpiece, removing sharp edges and getting components ready for assembly or additional machining.
Applications:
* Edge preparation
* Deburring
Benefits:
* Enhances safety during handling
* Prepares parts for welding or assembly
* Improves part aesthetics
6. Grooving Tools
A grooving tool is made to create grooves into the workpiece for plenty of reasons, including creating spaces for seals or O-rings.
Applications:
* Create grooves
* Create spaces for seals
Benefits:
* Creates grooves to precise dimensions
* Usability in many industrial applications
* Improved part functionality
7. Collet Chucks
Collet chucks are used to securely grip workpieces throughout machining operations. They offer superior concentricity and excel at securely gripping small to medium-sized parts.
Applications:
* Holding workpieces
* Enhancing concentricity
Benefits:
* Provides secure clamping
* Reduces setup time
* Improves machining accuracy
8. Tool Holders
Tool holders are basic essentials in mounting cutting tools to a CNC lathe machine. There are various types that fall under tool holders, such as straight shank holders, ER adapters and quick-change tool holders.
Application
* Mount cutting tools
* Tool changing process
Benefits
* Allows for a more stable tool
* Greater tool change, allows for significant quick changing
* Improves the machining process
9. Live Centers
Live centers are used to support the tailstock end of the workpiece during machining. Because the live center rotates with the workpiece, it reduces friction between the workpiece and the center and, therefore, reduces much of the wear.
Applications:
* Support workpieces
* Reduce friction in machining
Benefits:
* Increases accuracy in machining
* Increases tool life
* Reduces heat
10. Digital Readouts (DRO)
Digital Readouts are electronic devices that give accurate measurements of the position of a tool is at on the lathe. Digital readouts improve accuracy and decrease the chances of error.
Applications:
* Measuring tool positions
* Improving machining accuracy
Benefits:
* Provide measurements in real time
* Lower users’ error potential
* Improve machining productivity
11. Tool Presetters
Tool presetters are devices used to measure and set the tool offsets before machining. They guarantee accurate tool positioning, minimizing setup time while enhancing precision.
Applications:
* Setting tool offsets
* Reducing setup time
Benefits:
* Increases setup efficiency
* Enhances machining accuracy
* Reduces tool wear
12. Cooling Systems
Cooling systems play an integral part in keeping optimized machining conditions. The cooling system has the main primary purpose of cooling the cutting tool and work piece, and allows thermal distortion to be minimized, which also improves surface finish.
Applications:
* Cool cutting tools
* Improve surface finish
Benefits:
* Reduced wear on the tool
* Improved surface finish
* Increased machining efficiency
13. Safety Accessories
Safety accessories, such as guards and shields, are very important to prevent risks associated with an injury to the operator, due to chips and coolant. Safety accessories provide better and safer machining practices in the shop/workshop.
Applications
* Protecting Operators
* Ensuring safe machining practices.
Benefits:
* Reduce the likelihood of injury.
* Check all safety requirements
* Build confidence with operators.
14. Measuring Tools
In CNC Machining, the ability to measure accurately is very important. To measure accurately you will need to tools like measuring instrument, such as measuring instruments. You will need measuring tools such as: micrometers, calipers, and height gauges to ensure specs on any pieces you make.
Applications:
* Measuring part dimensions
* Ensure parts of quality.
Benefits:
* provides accurate measuring
* provides surety of quality pieces
* provides reduced scrap rates
15. Shop Tools
Aside from the component tools of a lathe, there are also shop tools necessary for after maintenance and for setup, such as wrenches, hammers, and screwdrivers.
Applications:
* anything and everything to do with maintenance
* anything and everything to do with setup
Benefits:
* Provides accessibility to the machine and maintenance
* Assists with any setup processes etc.
* Helps to improve the efficiency of your workshop.
17. Cutting Tool Sharpening Equipment
Tools require a regular sharpening schedule to provide optimum cutting. Equipment for sharpening tools, such as grinders and honing machines, is tools for maintaining cutting tools.
Applications:
* Sharpening cutting tools
* Maintaining tool performance
Benefits:
* Prolonged tool life
* Cutting maintenance
* Reduced tool costs
18. Vibration Dampening Equipment
Vibration-damping tools can reduce vibrations from machining such as damping bars, improve surface finish, and prolong tool life.
Applications:
* Reduce vibrations while machining
* Improve surface finishes
Benefits:
* Improved machining accuracy
* Tool life improvement
* Improved surface finishes
19. Automation Accessories
Automation aids, such as robotic arms or conveyors, can automate loading and unloading processes, along with increasing throughput and reducing labor costs.
Applications:
* Automation of loading/unloading
* Improve production
Benefits:
* Increased throughput
* Decreased labor costs
* Improved production
20. Maintenance Tools
Regular maintenance is vital for the longevity of CNC lathe machines. Tools like lubricators, cleaning brushes, and diagnostic equipment are essential for upkeep.
Applications:
* Machine maintenance
* Ensuring machine longevity
Benefits:
* Prevents machine breakdowns
* Extends machine life
* Reduces maintenance costs
Lathe Tools in the UAE
The UAE’s industrial sector is rapidly advancing, with numerous workshops and manufacturing units adopting CNC lathe machines. Understanding and utilizing the right lathe tools is vital for preserving a strong position in this ever-evolving market. Whether you’re in Dubai, Abu Dhabi, or Sharjah, investing in quality lathe tools and accessories ensures precision and efficiency in your machining operations.
Equipping your CNC lathe machine with the appropriate tools is crucial for delivering top-notch results and maintaining operational efficiency. From turning inserts to automation accessories, each component is critical to the overall machining operation. By investing in these essential lathe tools and ensuring their proper maintenance, CNC operators can enhance productivity and meet the growing demands of the UAE’s industrial landscape.
