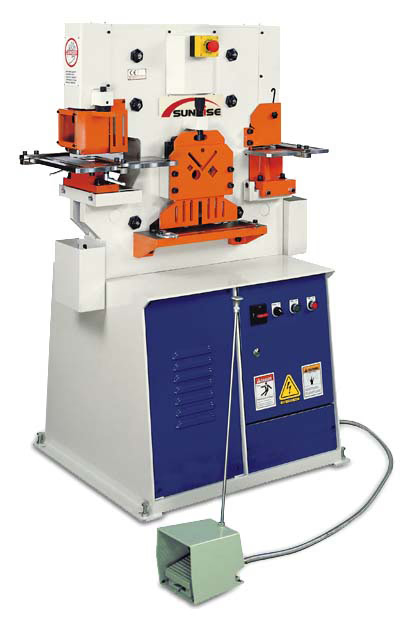

Hydraulic ironworker machines, like the Ironworker K Series IW-45K, are designed for heavy-duty metalworking tasks in fabrication shops and industrial environments. With its robust hydraulic system and sturdy build, this ironworker is perfect for cutting, punching, and shearing a variety of metal materials with exceptional precision and efficiency. The IW-45K offers versatile capabilities, including punching, notching, and angle cutting, making it an ideal solution for a wide range of metalworking applications. Its compact design and user-friendly controls ensure ease of operation, while its high-performance features allow operators to tackle demanding tasks with confidence. Whether used for small-scale fabrication or large-scale production, the IW-45K Ironworker is a reliable and indispensable tool for metalworkers seeking superior performance and versatility.
This compact ironworker includes a notcher and features a frame recess below the punching station to allow punching on the flange of large channel or beam profiles. Angles can be sheared at the flat bar shear station, making the IW-45K even more versatile. As one of the top Ironworker machines in UAE, it offers efficiency, accuracy, and ease of use, meeting the diverse needs of metalworking professionals.
Hydraulic ironworker machines are versatile and robust tools designed to streamline metal fabrication processes. These machines serve a dual purpose, seamlessly combining punching and shearing capabilities in a single unit. With punching capacities ranging from 35 to 200 tons, hydraulic ironworkers are adept at handling a variety of materials, making them indispensable in metalworking shops.

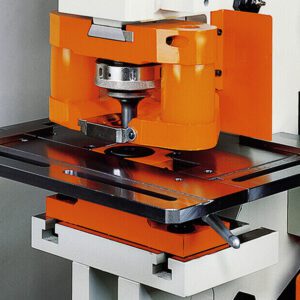

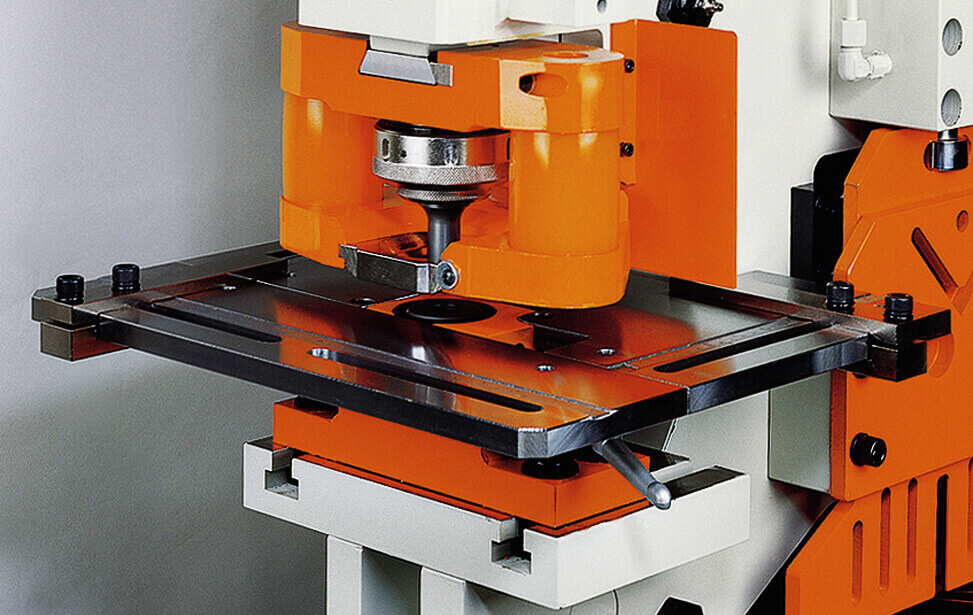

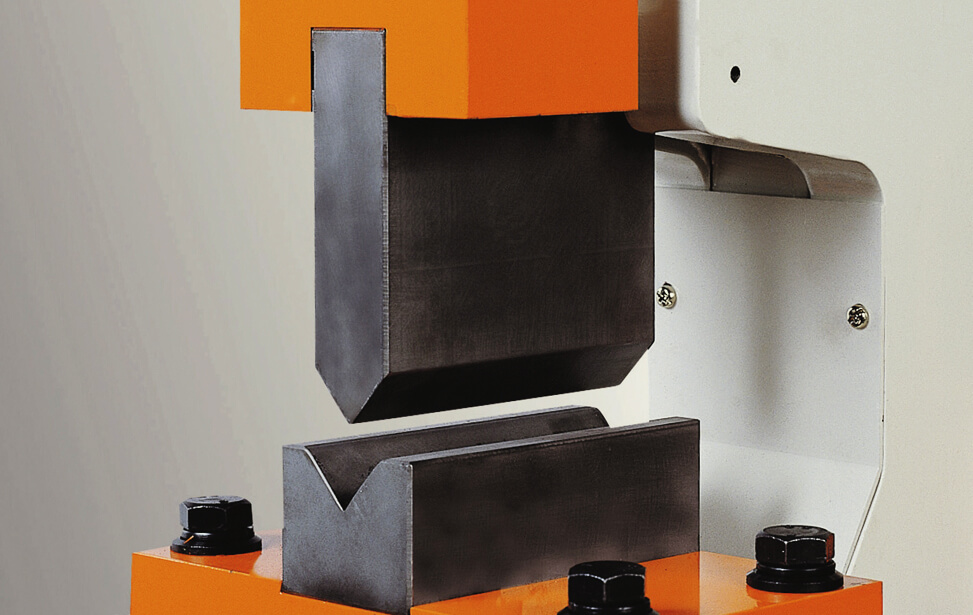

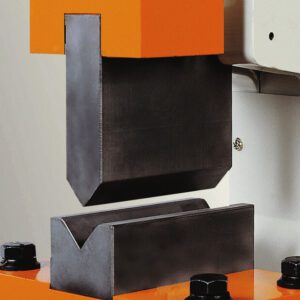

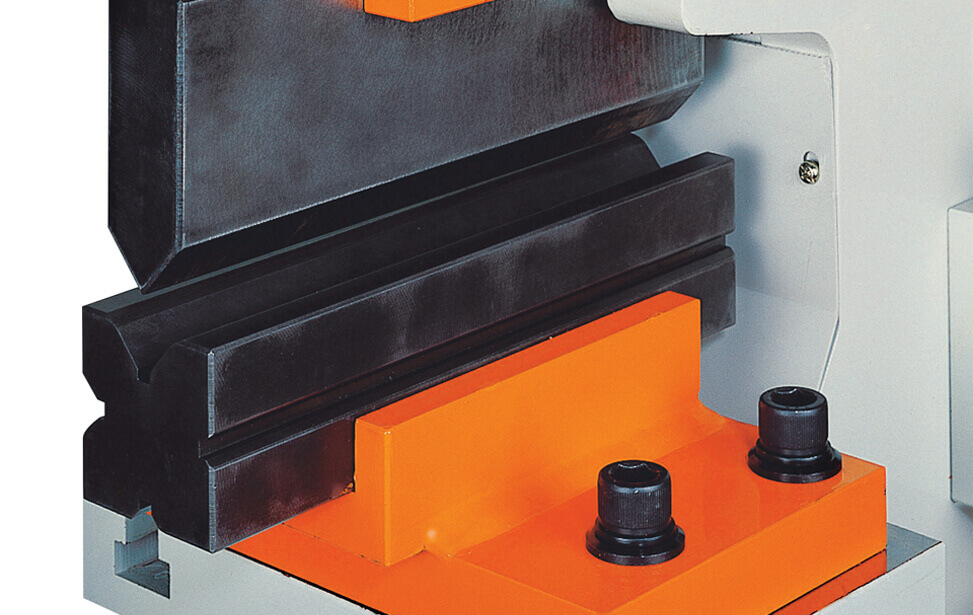

These machines are equipped with powerful hydraulic systems that enable precise punching and shearing operations. The punching station allows for the creation of holes in various shapes and sizes, while the shearing station excels in cutting flat bars, angles, and profiles. Hydraulic ironworkers often come with notching and bending stations, further expanding their application range.
Whether you’re working with steel, aluminium, or other metals, hydraulic ironworkers provide efficiency and versatility. They find applications in a wide range of industries, including construction, manufacturing, and metal fabrication, where the need for accurate and efficient metal processing is paramount. The ability to perform multiple tasks in a single machine makes hydraulic ironworkers a cost-effective solution for businesses seeking to optimize their metalworking operations.
Model | IW-45K | IW-60K | IW-60B | IW-85KD |
Punching | Â | Â | Â | Â |
Punching Force | 45 Ton | 60 Ton | 60 Ton | 85 Ton |
Punch Capacity | ø22 x 15 | ø22 x 20 | ø22 x 20 | ø27 x 22 |
(Diameter x Thickness) | ø40 x 8 | ø40 x 11 | ø40 x 11 | ø50 x 12 |
Throat Depth | 165 | 200 | 200 | 410 |
Max. Stroke Length | 30 | 40 | 40 | 100 |
Cycles / Min. (15mm stroke) | 37 | 34 | 34 | 38 |
Working Height Up to Die | 1050 | 1050 | 1050 | 1050 |

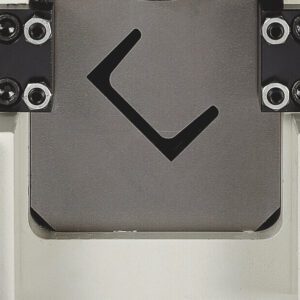

Angle Shearing | Â | Â | Â | Â |
Shearing Force | 45 Ton | 60 Ton | 60 Ton | 110 Ton |
Shearing Cylinder Stroke Length | – | – | – | 50 |

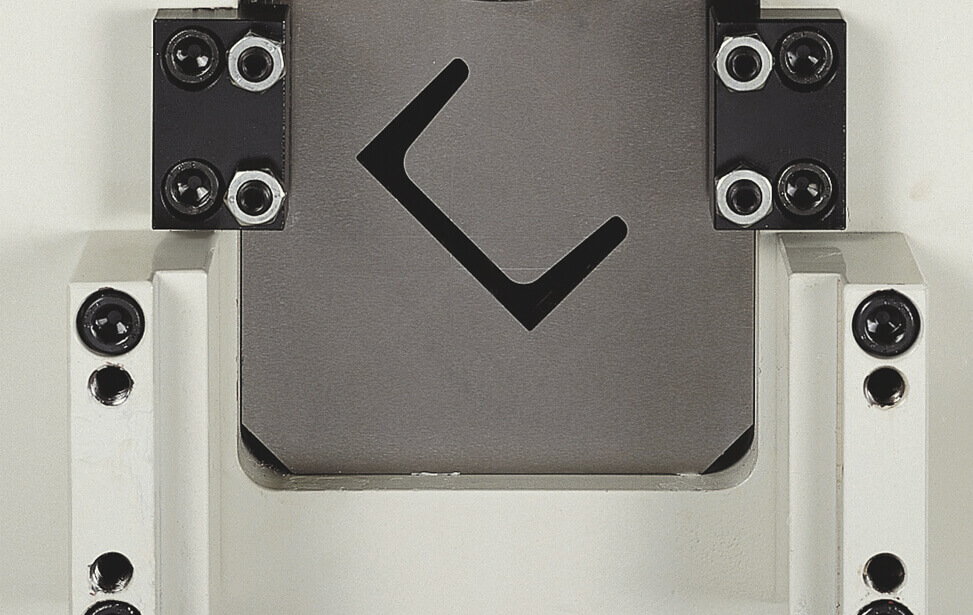

At 90° Shearing | 75 x 75 x 6 | 100 x 100 x 8 | 100 x 100 x 8 | 130 x 130 x 12 |
Working Height | 1000 | 1070 | 1070 | 1040 |
Flat Shearing | Â | Â | Â | Â |

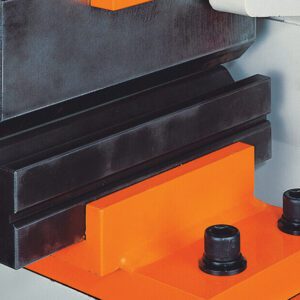

Flat Bar Shear | 300 x 10 | 350 x 15 | 350 x 15 | 406 x 17 |
Blade Length | 310 | 360 | 360 | 410 |
Working Height | 800 | 805 | 805 | 726 |
Bar Shearing | Â | Â | Â | Â |

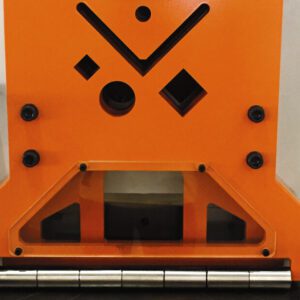

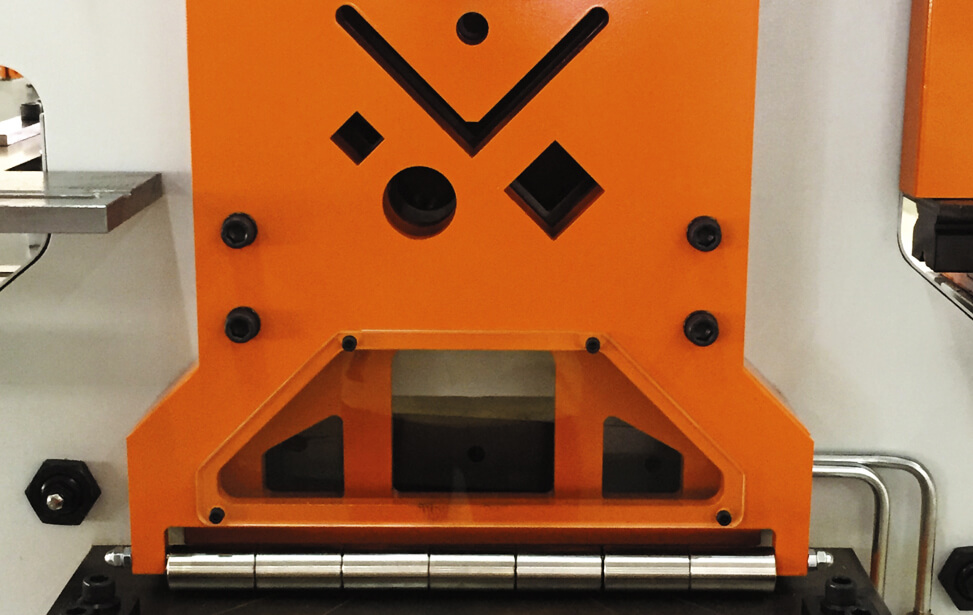

Round Bar Shear | ø30 | ø40 | ø40 | ø45 |
Square Bar Shear | 25 x 25 | 38 x 38 | 38 x 38 | 45 x 45 |
Channel Shear (H x B) | 76* | 102* | 102* | 152* |
I Beam Shear (H x B) | 76* | 102* | 102* | 152* |
Notching | Â | Â | Â | Â |
Rectangular Notcher (W x D x T) | 50.8 x 90 x 7 | 50.8 x 90 x 8 | – | 63.5 x 90 x 12 |
Vee-Notcher (Side x Side x T) | 90 x 90 x 8* | 90 x 90 x 8* | – | 105 x 105 x 12* |
Working Height | 1050 | 1050 | – | 1050 |
