Ram-Type vs. Turret-Type Vertical Lathes: Understanding the Difference

Vertical lathes are widely used in machining, especially for machining large, heavy metal parts. Renowned for their robust construction, stability, and precision, these machines deliver accurate results. Industries that deal with big components often depend on them for smooth and reliable work.

Two common types of vertical lathe machines are ram-type and turret-type machines. Both offer advantages, yet they cater to different functions. If you plan to invest in vertical lathe machines in the UAE, knowing how they differ will help you select the right machine.

What Is a Vertical Lathe?

A vertical lathe is a machine in which the workpiece is placed on a rotating flat table. The cutting tool shapes the material while the table spins. Since the part sits flat, gravity helps hold it in place. This makes it easier to work on large and heavy items.

Vertical lathes are commonly used to make parts like rings, discs, flanges, and other big components.

What Is a Ram-Type Vertical Lathe?

A ram-type vertical lathe has a vertical arm known as a ram that holds the cutting tool. This ram moves up and down to shape and cut the material.

Key Features

• Strong vertical ram movement
• Solid and stable machine design
• Usually uses one tool at a time
• Good for deep and heavy cutting

Advantages

The biggest advantage of a ram-type lathe is its strength. It is built to handle heavy work without shaking or losing accuracy. Because of this, it gives clean and precise results.

It is a good choice for working on large and heavy parts like industrial rings, gears, and machine components. Many heavy industries prefer this type because it can handle tough materials easily.

Limitations

It is slower compared to other options. Since only one tool is used at a time, the machine must be stopped for tool changes, increasing the overall processing time.

Because of this, it is not ideal for jobs where many parts need to be made quickly.

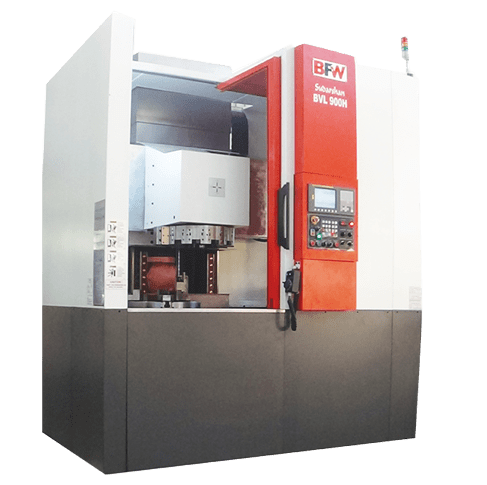

What Is a Turret-Type Vertical Lathe?

A turret-type vertical lathe has a rotating turret that can hold multiple tools simultaneously. Without stopping the machine, it indexes the turret to set the required tool in place.

Key Features

• Multiple tools in one setup
• Quick tool changes
• Can perform different operations easily
• Often comes with CNC control

Advantages

The main benefit of a turret-type lathe is speed. Since the tools are already in place, the machine can continue working without stopping. This saves time and increases productivity.

It works well for batch production, where identical parts are made again and again. It can perform several operations at once, optimizing both speed and output.

Many turret-type machines also support CNC systems, which help maintain consistent quality in every part.

Limitations

Turret-type lathes are not as strong as ram-type machines when it comes to very heavy cutting. They are made more for speed than for handling extreme loads. They require a bigger investment at the start, making them less ideal for small workshops.

They also have a higher initial cost, which may be difficult for small workshops.

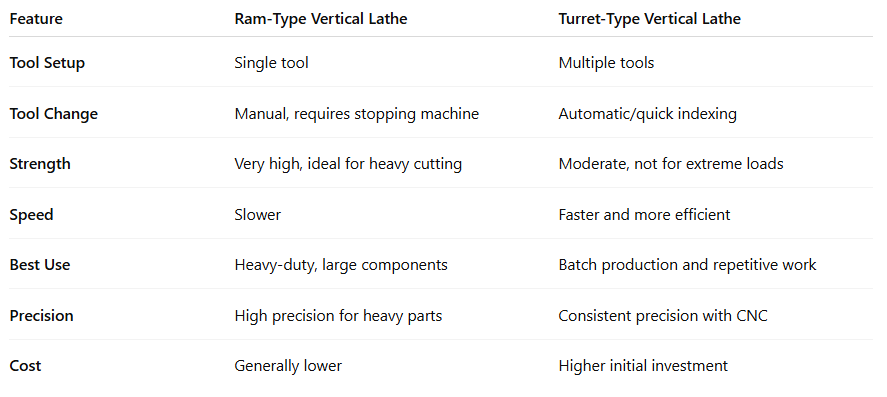

Key Differences

Which One Should You Choose?

Selecting the right option depends on the nature of your work.

• If you handle large and heavy parts and need strong, precise cutting, a ram-type lathe is the better choice.
• If your aim is higher production in less time, a turret-type lathe is the right choice. It helps reduce time and increases efficiency for repeated jobs.

Things to Think About Before Buying

When selecting vertical lathe machines in the UAE, it is important not to focus solely on the machine type but also to consider the following factors:

• The size of your workpieces
• How many parts you need to produce
• The degree of precision needed
• Your spending limit
• Future business growth

Partnering with a reliable workshop equipment supplier in the UAE takes the guesswork out of the process. A good supplier will pay attention to your needs, steering you toward a machine ideal for your operation.

Final Thoughts

Both ram-type and turret-type vertical lathes have their own strengths and are useful in different situations. A ram-type machine is ideal when you need strength, stability, and precise cutting for heavy components. On the other hand, a turret-type machine is better suited for faster production and handling multiple operations in less time. Every workshop has different needs; the appropriate machine depends on the kind of work you do, your production targets, and your strategic goals. By clearly understanding the differences between these two types, you can make a smarter decision that helps improve efficiency, reduce downtime, and get better results from your operations.
