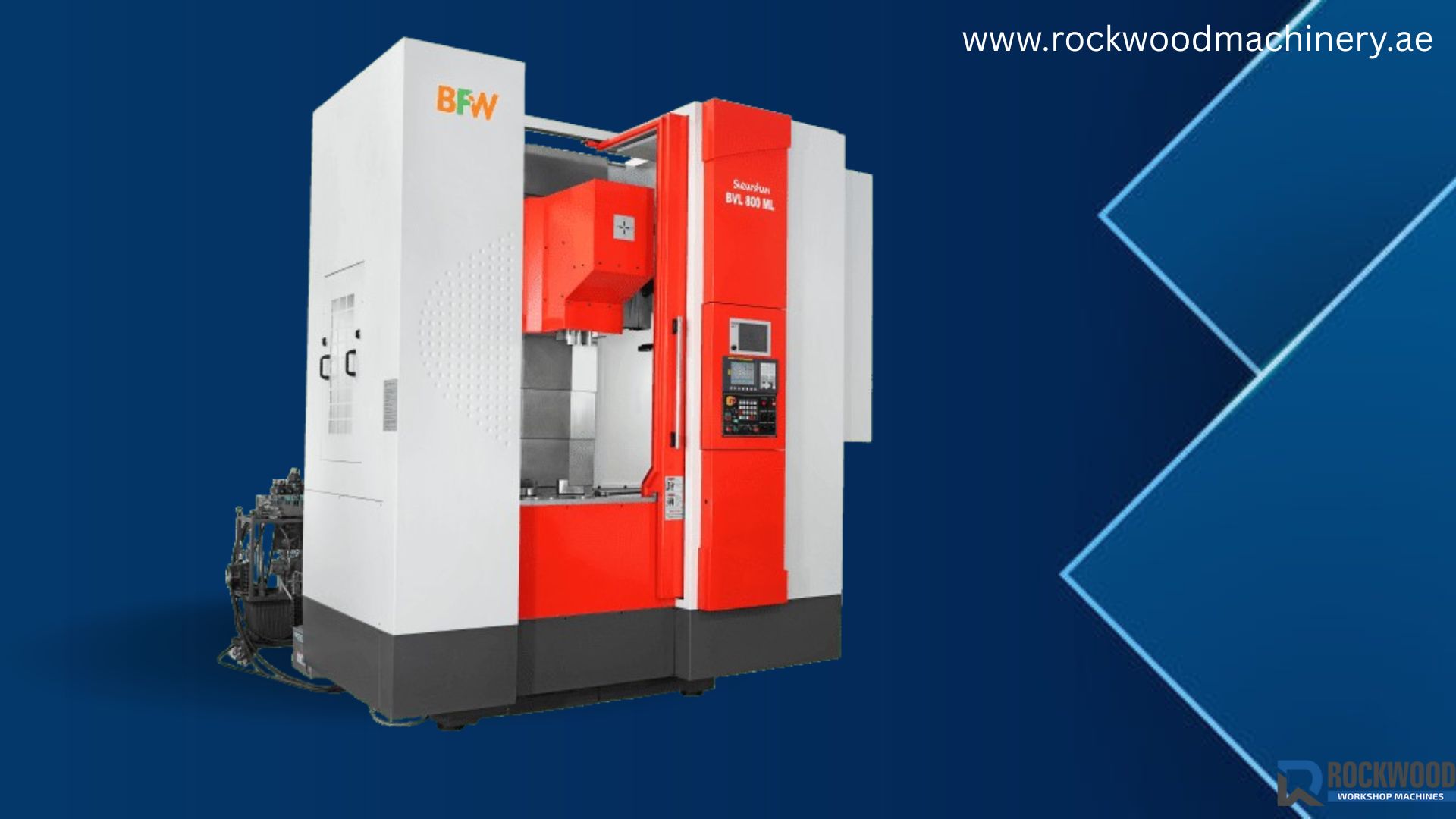

How Vertical Lathes Handle Oversized and Heavy Workpieces With Ease

With today’s modern machining, working with oversized and heavy workpieces is no longer a chore—thanks to the advancements in vertical lathes. Vertical lathes, unlike historically horizontal lathe configurations, were designed for applications at this size, weight, and accuracy level. Industries that manufacture components such as turbine casings, gear blanks, or other heavy-duty flanges depend on vertical lathes and their capability to machine large workpieces efficiently and effectively.

But what are the specific properties of a vertical lathe machine that lend it to heavy and oversized workpieces? Let’s examine the unique features and design qualities of the machines that enable machining of even the largest workpieces.

Why Choose a Vertical Lathe for Heavy Workpieces?

1. Gravity Works in Your Favor

In a vertical lathe, the workpiece sits horizontally on a rotating table while the cutting tool moves vertically. This configuration uses gravity as a natural stabilizer, allowing large, heavy components to stay securely in place without complex clamping systems. This not only improves safety during setup but also reduces the chance of part movement during cutting.

For machinists, this means less time spent adjusting supports and more time producing accurate parts.

2. Robust Design, Built for Scale

Vertical lathes are designed to be robust. Vertical lathes have strong, rigid columns and a solid base to absorb force while machining thick or dense materials. Whether it is a 2-meter-wide flange or a multi-ton steel component, the vertical lathe will be stable and accurate.

This is especially important when high tolerances are demanded on parts that cannot be easily scrapped or reworked.

3. Easier Handling and Setup

For heavy workpieces, horizontal lathes typically require overhead lifts, as well as additional supports. In a vertical lathe, the workpiece can be loaded directly onto the faceplate from above to accomplish loading as easily as possible, which reduces strain for the operator and minimizes mistakes during alignment.

Workshop teams also typically find that vertical lathes require less downtime for changeovers, and that set-up time is faster – an important consideration for high-volume or contract production.

4. Better Chip Control and Cooling

One lesser-known benefit of vertical lathes is their method of managing chips, scrap, and coolant. Chips are forced downward and away from the work zone by gravity, which improves visibility at the cutting zone, while also minimizing the risk of re-cutting swarf. This not only improves surface finish, but also improves the life of the cutting tool.

Coolant is directed downward and helps with cooling while also minimizing coolants from the potential mess around the machine.

Industries That Rely on Vertical Lathes

Vertical lathes are widely used across sectors where size and weight are key concerns. Some of the most common applications include:

• Energy and Power: Large valve bodies, turbine housings, generator shafts
• Oil and Gas: Flanges, pressure vessels, and blowout preventers
• Heavy Equipment: Wheels, hubs, bearings, gear blanks
• Railway and Marine: Brake discs, couplings, propeller shafts

These industries often demand extreme precision in parts that are too large for conventional machines. For that reason, vertical lathes have become a staple of any serious workshop equipment lineup.

Selecting the Right Lathe Machine for Your Workshop Needs

Not all lathes are created equal. If you’re looking to expand your capabilities with a vertical lathe machine, here are some important features to consider:

• Table Diameter & Load Capacity: Ensure the machine can support your largest components.
• Maximum Swing: Determines the largest diameter you can machine.
• Height Between Table and Tool: Important for taller parts.
• CNC vs Manual: CNC vertical lathes offer automation, multi-tool stations, and precision programming.
• Low-Maintenance Design: Machines with simple servicing requirements help lower long-term operating costs.

Most importantly, choose equipment from trusted workshop equipment suppliers who can offer installation, training, and long-term support. A good supplier will also help you match the machine to your current and future machining needs.

Lathes That Work as Hard as You Do

The demands of machine tools will continue to evolve as manufacturing evolves. Vertical lathes are the best of both worlds, offering power and precision, and enabling machinists to machine heavy-duty parts without sacrificing accuracy. Whether you build one-off parts or are running high-volume production, a quality design of a lathe machine is going to be an invaluable asset to your workshop.

For job shops and production facilities machining oversized parts, vertical lathes are not an option, but a requirement! Vertical lathes improve control, ergonomics, and are more reliable in providing the end performance to machining tasks where you need it the most.

Final Thoughts

Handling massive workpieces used to require complex setups, multiple machines, and a lot of manual intervention. But with today’s advanced vertical lathes, you can do more with less—less setup time, less handling effort, and less risk of error.

If you’re looking for new lathe machinery or to expand your lathe machinery offerings, don’t forget to consider a vertical lathe—it’s a production machine with numerous long-term advantages. And don’t just purchase machinery—make an investment arrangement with the workshop equipment supplier you trust to help you maximize your shop machinery usage by providing feedback on your requirements and objectives—they understand your industry, your materials, and your goals.
With the right lathe in place, even the heaviest challenges become manageable.
