Tapping is a crucial machining process that makes it possible to create internal threads in various materials. Tapping machines, especially in the UAE, play a key role in manufacturing, offering efficiency and precision. However, tap breakage is a frequent issue that operators deal with. In addition to interfering with production, this may result in expensive repairs, delays, or even workpiece damage.

We’ll go over the typical causes of tapping machine tap breakage in this blog post and offer helpful tips to avoid it. This guide will assist companies in the UAE, in making sure tapping machines continue to function properly for many years to come by improving machine performance and reducing downtime.

1. Incorrect Tapping Speed

One of the leading causes of tap breakage is using the wrong tapping speed. Tapping speed refers to how fast the tap moves through the material. Every material has its optimal tapping speed, and deviating from this can increase the chances of tap breakage.

How to Avoid It:

However, to avoid this breakage ensure that you never exceed tapping speed recommendations from the manufacturer based on the material being tapped. If you’re unsure, it’s a good idea to begin with a slower speed and slowly increase it until you find the optimal setting. Tapping machines in UAE often come with adjustable speeds, so choosing the correct one based on the material can help prevent premature wear and tap failure.

2. Poor Lubrication

Lubrication helps reduce friction and stop heat production during tapping. If the tap is not properly lubricated, it may overheat, and wear out quickly. Dry tapping can also lead to tap failure.

How to Avoid It:

Ensure the tapping machine is sufficiently lubricated, use appropriate tapping fluid or oil, and monitor lubrication levels consistently. It also helps cool the tap and lessen friction during the process (and be careful, this is extremely critical in the hot UAE) Be sure to follow the manufacturer’s instructions when determining how frequently or what type of lubricant is supposed to be used on your equipment.

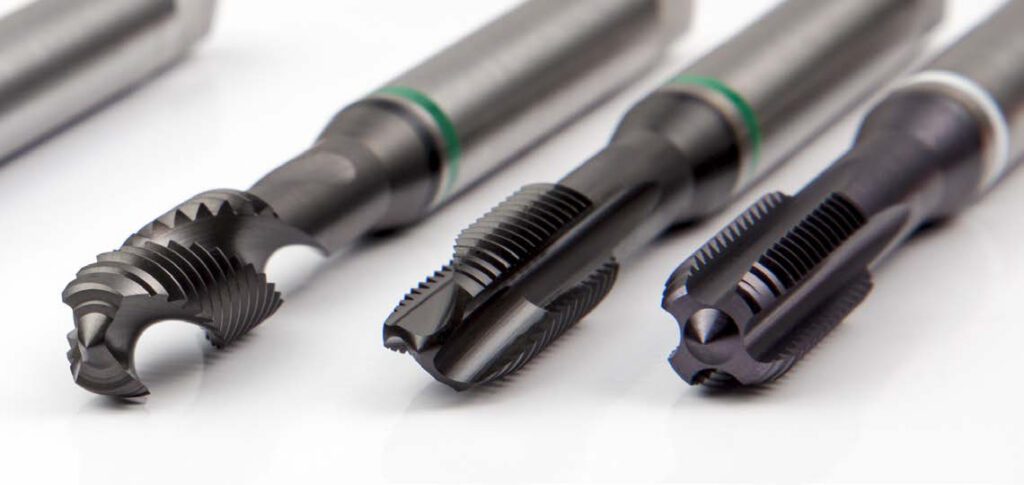

3. Wrong Tap Selection

Another common reason for breakage is using the incorrect tap for the material or application.  Selecting a tap that is too big or tiny for the hole or that isn’t suitable for the material being tapped might cause damage because each tap is made for a certain purpose. For example, using taps with mismatched diameters can cause the tap to break under pressure, while taps that don’t have enough thread relief can get stuck.

How to Avoid It:

Always use the right tap for your tapping process. Consider factors such as the material, hole size, and thread type when selecting a tap. If you’re not sure, reach out to an experienced industrial equipment supplier in the UAE who can help you choose the right taps for your tasks. Many tapping machines work with different taps, giving you more options for your operations.

 4. Incorrect Machine Settings

Every tapping machine has unique feed rate, speed, and depth options. Incorrect machine settings may put the tap under excessive strain, which could lead to its breaking. For example, setting a high feed rate can lead to excessive pressure on the tap, while a low feed rate might result in poor cutting, leading to tap damage over time.

How to Avoid It:

Before starting the tapping process, double-check that all machine settings are correct. It’s important to set the right depth and speed for the material you’re using. Many modern tapping machines let you set these settings precisely to avoid breaking the tap.

 5. Excessive Feed Pressure

Using too much force when tapping is another reason for breaking the tap. This usually happens when trying to tap tougher materials or when the feed rate is too high, which can place too much strain on the tap.

How to Avoid It:

Depending on the material and tap size, modify the feed rate to lower the feed pressure. If the machine starts to strain or the tap is having difficulty cutting through the material, reduce the feed rate to avoid unnecessary force. Never try to force the tap deeper than necessary, as this can lead to failure.

6. Dull Taps

Similar to any other cutting tools, taps also wear down over time.  A worn tap will find it increasingly difficult to penetrate the material which increases the risk of breakage. When taps become worn, they generate more heat, which can make them brittle and more prone to breaking under stress.

How to Avoid It:

To avoid problems, check the wear on your taps and replace them as soon as possible. Many tapping machines have a schedule to help you check your tools. Also, some industrial equipment suppliers in the UAE can fix worn-out taps to make them last longer.

7. Misalignment of Tap and Workpiece

Misalignment between the tap and the workpiece is another reason for tap breakage. If the tap and the hole are not properly aligned, it can result in uneven force distribution, which can cause the tap to snap. This often happens due to poor machine setup, lack of rigidity, or operator error.

How to Avoid It:

Make sure the tapping machine is aligned correctly before you start. Check everything with alignment tools, but also do this manually to be sure that it does not touch anything. If the machine allows set the spindle in such a way that better alignment is achieved. An accurate and stable tapping machine also minimizes the probability of misalignment.

8. Vibration in Tapping Machines

Vibrations during the tapping process can weaken the tap and increase the risk of breaking taps. This will happen when the machine isn’t sturdy or if the tapping speed is too fast. Too much vibration can wear out both the tap and the machine, making them last shorter.

How to Avoid It:

Ensure the tapping machine is securely fastened, and check that all parts are tight. If vibrations persist, reduce the feed rate and check the machine’s components for any looseness or damage. In some cases, vibration-dampening systems can be added to tapping machines to reduce the impact of vibration.

Particularly in industries in the UAE, tapping machines are important workshop tools used to make internal threads in various materials. However, tap breakage can be a frustrating and costly problem. By understanding why taps break and taking steps to prevent it, you can significantly reduce downtime and increase productivity.

To keep your tapping machines running smoothly, make sure to select the right taps, maintain proper machine settings, ensure lubrication, and regularly inspect for wear. For businesses in the UAE, working with a reliable industrial equipment supplier can provide access to high-quality tapping machines, expert advice, and tools designed to avoid these common issues.

By following these tips, you can help ensure that your tapping operations remain efficient and cost-effective, improving your overall manufacturing processes.
